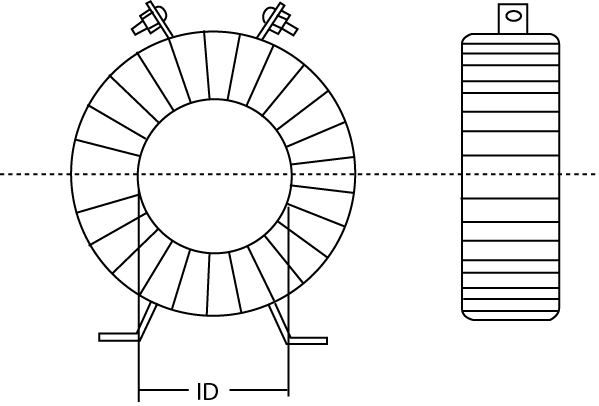

Tape Wound Measurement Current Transformers (Refer to Guide for Selection for selection help)
- Option of Tag terminals or insulated wire leads
- Tough non-adhesive vulcanised PVC tape for excellent protection
- Option for busbar or foot mounting
- Excellent flexibility in terms of dimensional and performance requirements
Performance Data
Temperature Range
-40°C to +75°C
Insulation Class
B
Dielectric Strength
2.5 kV/min
Nominal Frequency
50Hz / 60Hz
Nominal Strength (A.C. primary)
660V
Degree of Protection
IP00
Rated Short Circuit Thermal Current (Ith)
60 X rated primary current for 1 second
Rated Dynamic Current (Idyn)
2.55 X Ith
