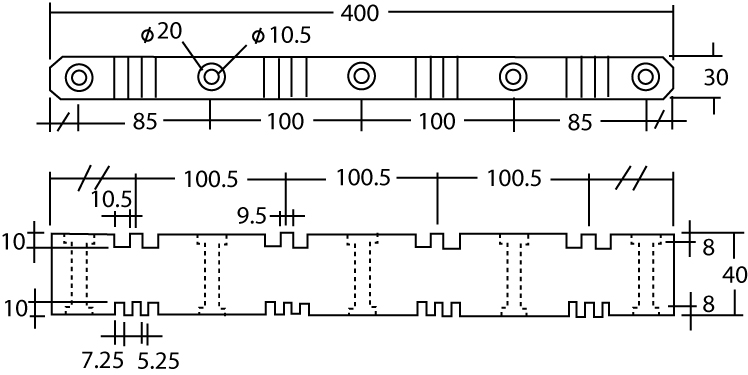

BSD4/210/306BG
- Type tested to IEC 60439-1 in Australia
- Made of halogen free fiberglass composite materials
- Self-extinguishing and heat resistant (ISO 75/A>200°C)
- High thermal, mechanical & electrical strength
Specifications
Material
DMC
Phases
4
Busbar Side 1 (mm)
10mm x 2
Busbar Side 2 (mm)
6mm x 3
Rated Voltage (V)
660
Max Bolt Size
M8
Recommended Torque (Nm)
16
Short Circuit Ratings (to IEC 60439-1)
kA RMS
50
kA PEAK
105
Duration (secs)
1
Busbar Size (mm)
2 x 75 x 6
Support Distance (mm)
400
Test Voltage (V)
415
Frequency (Hz)
50/60
Test Report Number
1119/1
Material Specification
Material
Fiberglass reinforced, unsaturated polyester
Discharge
Halogen free
Environment Protection
Recyclable
Color
Beige
Working Temperature
160°C
Temperature of Deflection
>200°C
Deflection Under Load @ 100°C
1.2mm
Flammability
UL94 Class VO & 5VA
Moisture Absorption
Tropicalised (<12mg-BS2782)
Charpy Impact Strength @ 90°C
26kJ/sq.m
Flexural Strength
90MPa
Flexural Modulus
11.5GPa
Tensile Strength
30MPa
Electrical Strength @ 90°C
11.0 MV / m (IEC243)
ARC Resistance (ASTM D495-73)
195s
Insulation Resistance
12.3 log Ohms (IEC167)
Tracking Resistance (DIN 53480)
Grade KA3C (Method A)
>B600 (Method B)
>600V
(BS5901/IEC112)
Loss Tangent @ 1 MHz
tan 0.013
